9QZ-2900A Self-Propelled Forage Harvester

It mainly reaps green and storage corn, oats and other crop with a working width of 2.93m. German hydraulic driven walking, adopting reciprocating imitation cutting table, equipped with an inverter gearbox, which can be timely anti-spitting due to blockage, with strong operational performance and high production efficiency.

12pieces Cutting Blades, Chop more evenly and smoothly

Product Details

Technical Parameters9QZ-22009QZ-2900A9QZ-2900B9QZ-30009QZ-3000A
The Whole MachineThe Weight of Machine(kg)55007260808083707500
Shipping Dimension(mm)6400*2490*4800(Working Status)9100*3200*5200(Working Status)8900*3210*5200(Working Status)8100*3160*3600(Transportation Status)7700*3320*4940(Working Status)

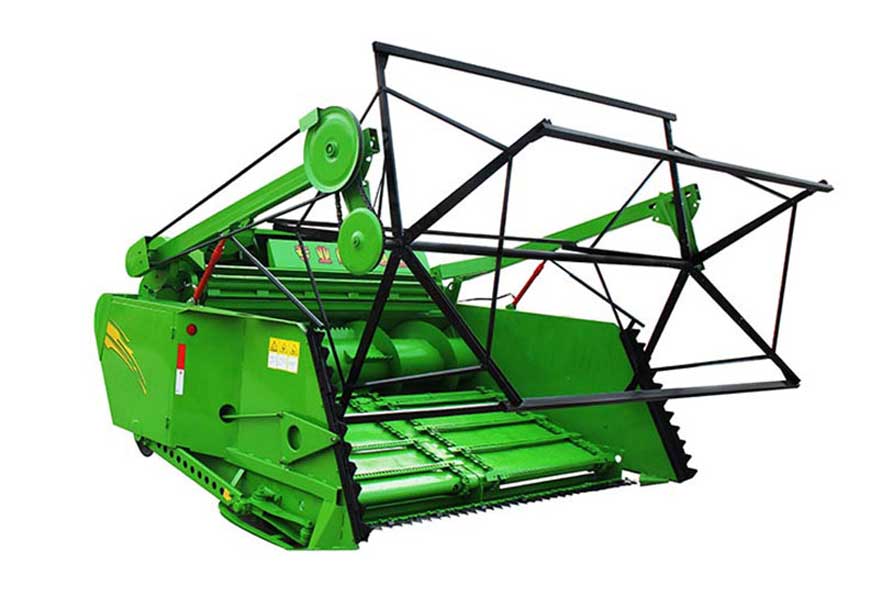

HeaderWorking FormatRound WorkingReciprocating WorkingReciprocating WorkingRound WorkingRound Working
Working Width(mm)22702930291029602850
Stubble Height(mm)≤150≤150≤150≤150≤150
Material Shredding SystemFeedingFeeding Quantity48888
Whehtert ReverseYesYesYesYesYes

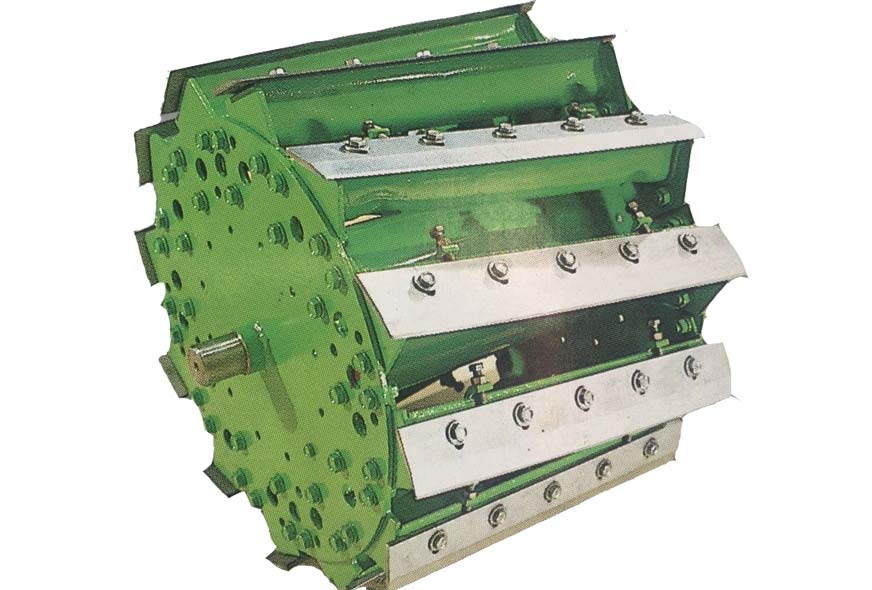

CuttingCutting Length(mm)8-25(adjustable)8-45(adjustable)8-45(adjustable)8-45(adjustable)8-45(adjustable)
Cutting Roller Speed(r/min)1100960960960960
Cutting Blades Quantity12pieces12pieces24pieces24pieces24pieces
Material Shredding SystemWhether the grain is broken into piecesNoNoYesYesYes
Turning Range±135°±90°±90°±90°±90°
Whether or not the second throw (accelerator)NoNoYesYesYes
Loss Ratio≤3%≤3%≤3%≤3%≤3%

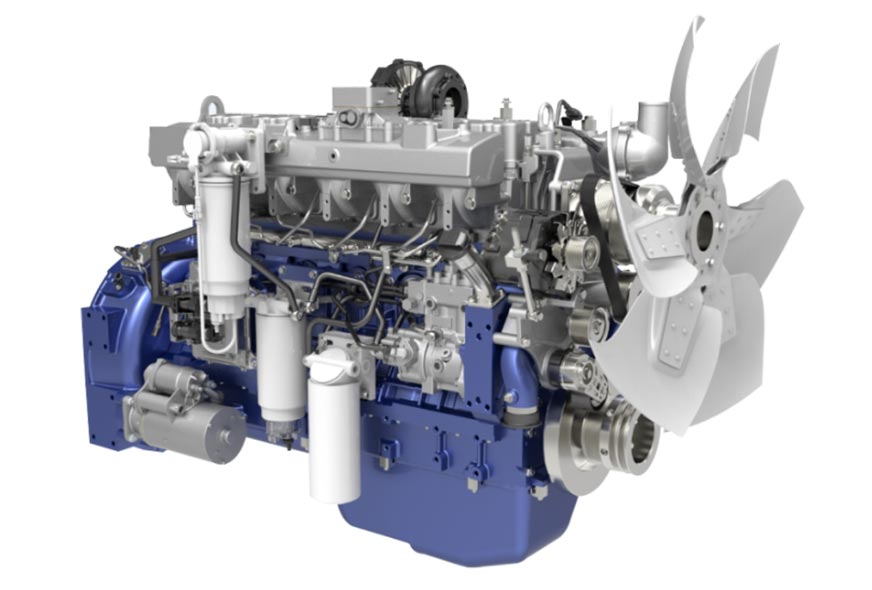

Power SystemEngineHorsepower(kW,ps)118,160228,310228,310228,310228,310
Cylinder QuantityIn-line four-cylinderInline six-cylinderInline six-cylinderInline six-cylinderInline six-cylinder
Engine Rated Speed(r/min)23002200220022002200
Air Inlet System
Double air inlet and double filter elementDouble air inlet and double filter elementDouble air inlet and double filter elementDouble air inlet and double filter element

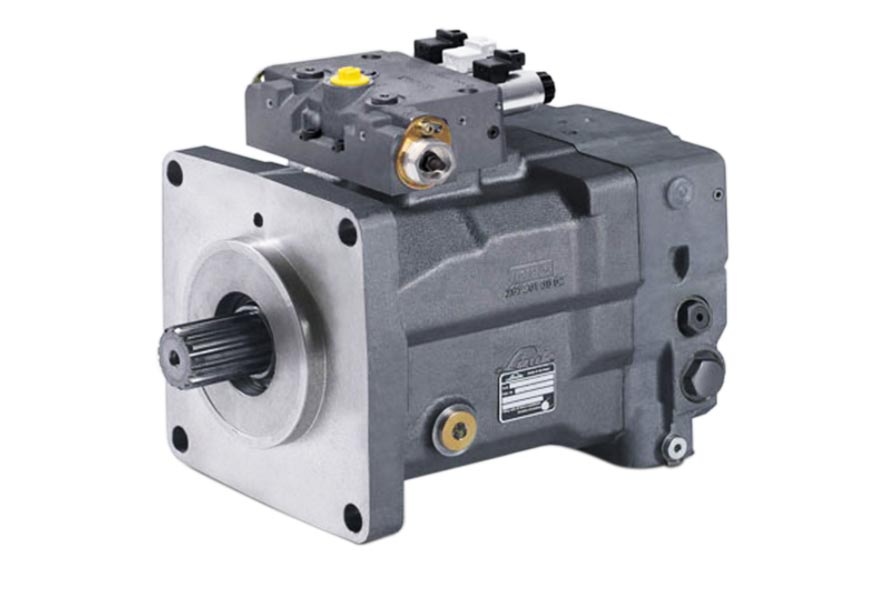

Walking ChassisDriveFront wheel drive, rear wheel steering, hydraulic drive system imported from Germany
Ground Speed(km/h)


2Gear2.3-7 3Gear6.4-19

1Gear1.4-3.5 2Gear3.3-8.2 3Gear8.0-20 R Gear3.4-8.5
