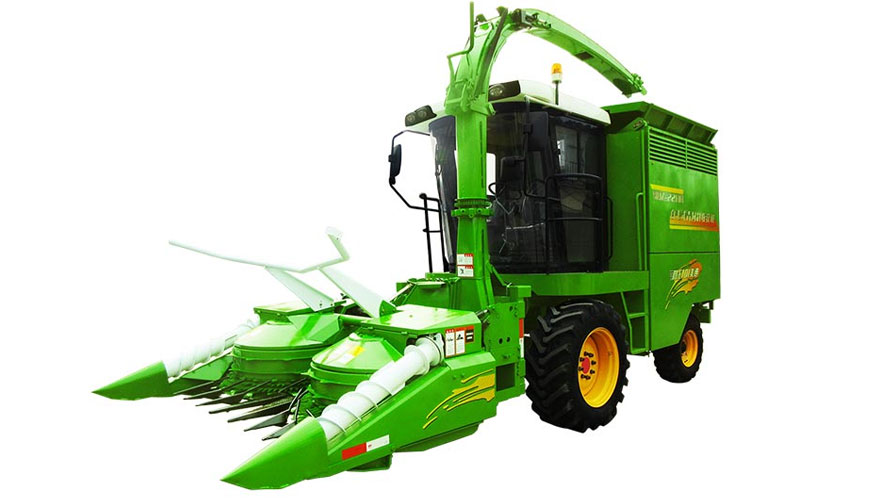

9QZ-2200 Self-Propelled Forage Harvester

9QZ-2200 Self-Propelled Forage Harvester

It is mainly used for harvesting corn, oats, sorghum and other crops, with a working width of 2.27 meters. It is driven by German hydraulic power and equipped with a tower cutting table with a four-cylinder 160hp turbocharged engine. With strong power, the whole machine is small and flexible, suitable for small and medium-sized plots.

Product Details

Technical Parameters9QZ-22009QZ-2900A9QZ-2900B9QZ-30009QZ-3000A
The Whole MachineThe Weight of Machine(kg)55007260808083707500
Shipping Dimension (L*H*W)(mm)6400*2490*4800(Working Status)9100*3200*5200(Working Status)8900*3210*5200(Working Status)8100*3160*3600(Transportation Status)7700*3320*4940(Working Status)

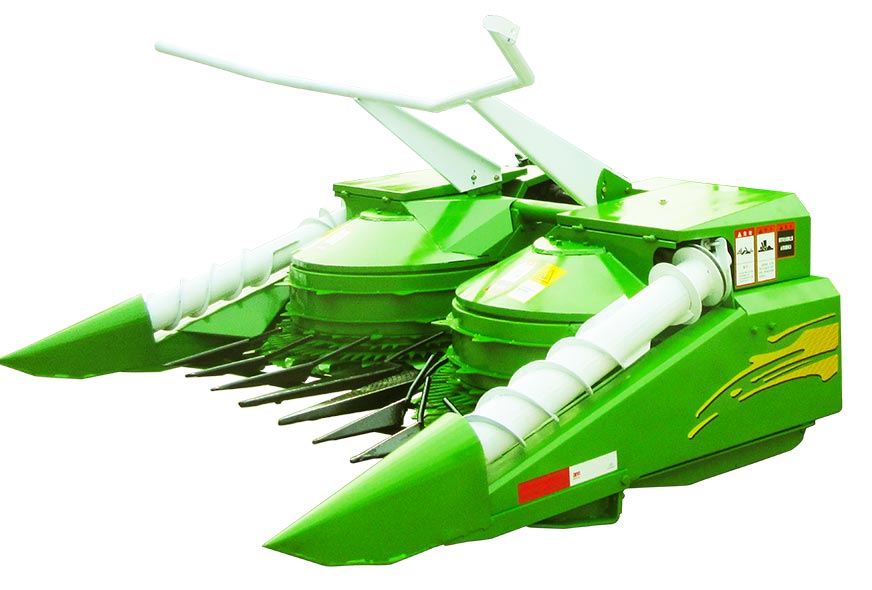

HeaderWorking Formatround workingreciprocating workingreciprocating workinground workinground working
working Width(mm)22702930291029602850
Stubble Height(mm)≤150≤150≤150≤150≤150
Material Shredding SystemFeedingFeeding Quantity48888
Whether Reverseyesyesyesyesyes
CuttingCutting Length(mm)8-25(adjustable)8-45(adjustable)8-45(adjustable)8-45(adjustable)8-45(adjustable)
Cutting Roller Speed(r/min)1100960960960960

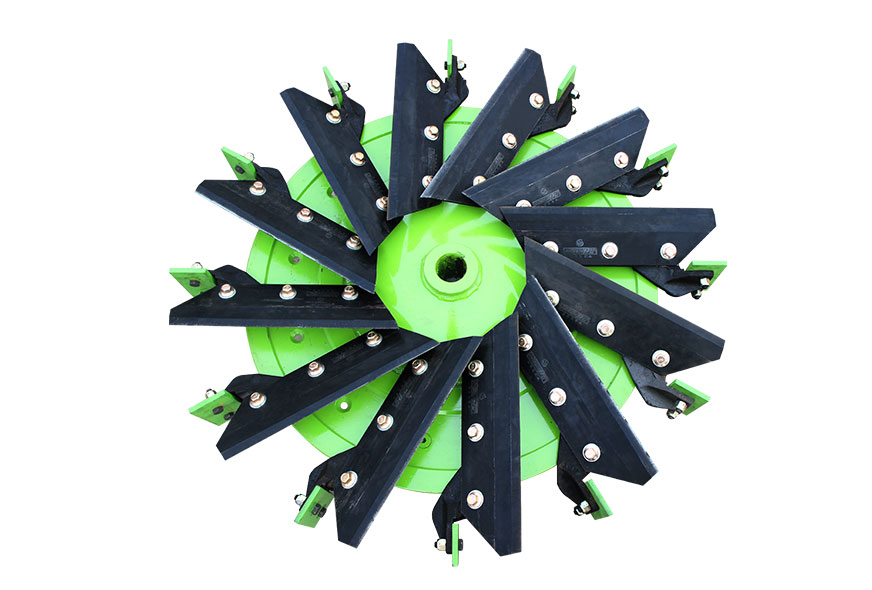

Cutting Blades Quantity12pieces12pieces24pieces24pieces24pieces
Material Shredding SystemWhether the grain is broken into piecesNoNoYesYesYes
Turning Range±135°±90°±90°±90°±90°
Whether or not the second throw (accelerator)NoNoYesYesYes
Loss Ratio≤3%≤3%≤3%≤3%≤3%

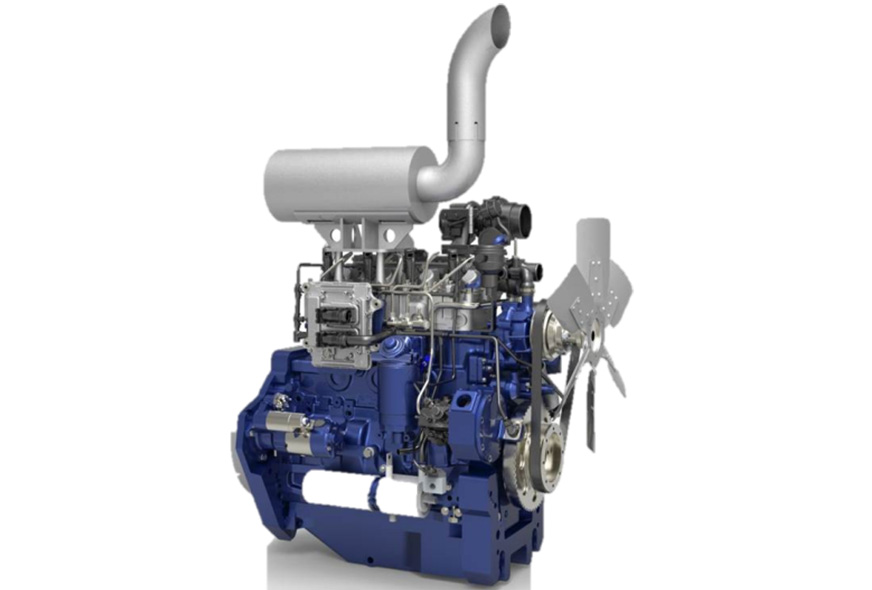

Power SystemEngineHorsepower(kW,ps)118,160228,310228,310228,310228,310
Cylinder QuantityIn-line four-cylinderInline six-cylinderInline six-cylinderInline six-cylinderInline six-cylinder
Engine Rated Speed(r/min)23002200220022002200
Air Inlet System
Double air inlet and double filter elementDouble air inlet and double filter elementDouble air inlet and double filter elementDouble air inlet and double filter element
Walking ChassisDriveFront wheel drive, rear wheel steering, hydraulic drive system imported from Germany
Ground Speed(km/h)1Gear1-3
2Gear2.3-7 3Gear6.4-19
1Gear1.4-3.5 2Gear3.3-8.2 3Gear8.0-20 R Gear3.4-8.5
